Description
Medium resolution session (~25 km / pixel) from circular orbit (altitude of Phobos).

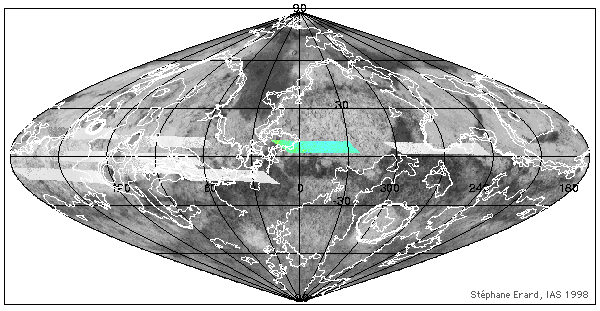

Bright and intermediate terrains in Arabia Terra and Terra Meridiani.
Observations
| Name | Date | Spectra | Window size | Estimated local time | Phase angle | Solar Meridian | Ls | Mars-Sun dist (au) |
| ARAbia | 21/02 | 2432 | 98 x 25 | 8:50-12:40 | 0.5° – 5.2° | 335° | 2.0° | 1.563 |
Orbit
| Mean distance (km) | Eccentricity | Inclination (°) | W (°) | w (°) | Time & day of pericenter |
| 9667.47 | 0.012806 | 1.2870 | 125.739 | 317.259 | 1:56:50, 21/2 /1989 |
Special corrections
- Dark current file: fond2102.dg2
- Gain = 2
- Focal plane temperature = -72.2 °C
- Shift in coordinates: Dlong = -0.4°, Dlat = 0.5°
- High detector temperature, second level temperature correction is required
Files
| Telemetry file | Edited data | Calibrated data | Atmosphere removed | Coordinates | Altimetry file | |
| Data file | MARS2102.DAT |
ARAEVEN.EDT ARAODD.EDT |
ARAEVEN.CAL ARAODD.CAL |
ARAEVEN.ATM ARAODD.ATM |
ARA_COOR.DAT | ARAALT.DAT |
| Label | RAW_DATA.LBL | ARA_EDT.LBL | ARA_CAL.LBL | ARA_ATM.LBL | MAR_COOR.LBL | TOPO.LBL |
