Description
High resolution session (~7 km / pixel) from pericenter of the transfer orbit (elliptical with apocenter lowered).

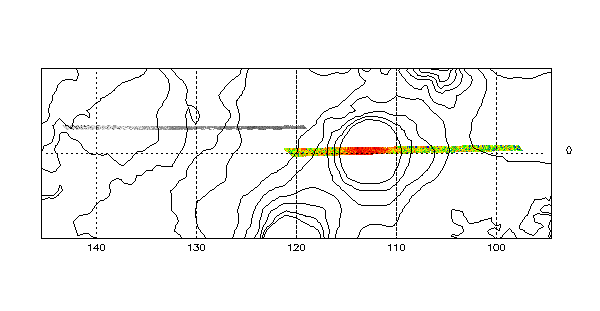

Window on Pavonis Mons, transect across the caldera.
The secondary science session is pointing outside the disk (dark sky).
Observations
| Name | Date | Spectra | Window size | Estimated local time | Phase angle | Solar Meridian | Ls | Mars-Sun dist (au) |
| PAVonis | 08/02 | 2365 | 296 x 8 | 10:15-12:30 | 2.8° – 4.2° | 100° | 350.5° | 1.547 |
Orbit
| Mean distance (km) | Eccentricity | Inclination (°) | W (°) | w (°) | Time & day of pericenter |
| 44490.10 | 0.904559 | 1.0230 | 191.451 | 77.252 | 5:52:42, 8/2/1989 |
Special corrections
- Dark current file: fond0802.dat
- Gain = 1
- Focal plane temperature = -71.2°C
- Shift in coordinates: Dlong = -3.6°, Dlat = 0.15°
- High detector temperature, second level temperature correction is required
Files
| Telemetry file | Edited data | Calibrated data | Atmosphere removed | Coordinates | Altimetry file | |
| Data file | MARS0802.DAT | PAVEVEN.EDT PAVODD.EDT |
PAVEVEN.CAL PAVODD.CAL |
PAVEVEN.ATM PAVODD.ATM |
PAV_COOR.DAT | PAVALT.DAT |
| Label | RAW_DATA.LBL | PAV_EDT.LBL | PAV_CAL.LBL | PAV_ATM.LBL | MAR_COOR.LBL | TOPO.LBL |
